Cable Remote Water Meters
Photoelectric direct reading wired remote water meter （DN15-40）
Coded direct reading remote water meter lxsge-bmyc (dn15-40)As the photoelectric direct reading remote water meter independently developed and produced by our company, it is the only one with invention patent in the domestic similar products, and has obtained the key support of
Detailed Introduction
Product application
Water supply enterprises and high-grade buildings use tap water for one household and one meter, step-by-step water price measurement, etc.
Product features
·Four digit round full true direct reading, patent technology to solve the carry blind area, strong anti-interference ability, primary and secondary data absolute synchronization.
·At ordinary times, no power supply is needed, only works at the moment of meter reading, overcomes the power supply problem to the greatest extent, and the electronic unit has a longer life.
·The counter can be vacuumized by stainless steel sealing technology to ensure that electronic components are not affected by moisture and water, and the system has high stability.
·Plug in interface, the chip solidifies the unique address code, no wiring is needed to install and replace the meter, so as to solve the problem that the water company cannot replace the meter.
·With Internet of things / wired remote transmission / wireless remote transmission / simple copy and other group forms, users can choose independently.
·With remote valve control function, remote control water switch.
·It can be equipped with lorawan or Nb IOT wireless module of the Internet of things, without wiring through pipes, with long signal transmission distance and strong penetration.
·All core technologies are independently developed and successfully applied in large scale in the past 15 years, which is more trustworthy.
·One of the earliest enterprises in China to develop and apply photoelectric direct reading technology.
Concentrator
·With more than 300 meters, it is suitable for most occasions and has low installation cost.
·Static power: 2W
·Bluetooth interface, compatible with palmtop and smartphone.
Working temperature - 20 ℃ - 50 ℃
Technical Parameter
| Model |
DN mm |
Range ratio Q3/Q1 |
Overload flow Q4m³/h |
Common flow Q3m³/h |
Boundary flow
Q2L/h |
minimum flow
Q1L/h |
Dial maximum Small reading |
The most distant Small reading |
Dial maximum Large reading |
| LXSGE-BMYC-15 | 15 | 80 | 3.125 | 2.5 | 50 | 31.25 | 0.0001 | 1..... | 9999 |
| 100 | 40 | 25 | |||||||
| 125 | 32 | 20 | |||||||
| LXSGE-BMYC-20 | 20 | 80 | 5 | 4 | 80 | 50 | 0.0001 | 1..... | 9999 |
| 100 | 64 | 40 | |||||||
| 125 | 51.2 | 32 | |||||||
| LXSGE-BMYC-25 | 25 | 80 | 7.875 | 6.3 | 126 | 78.75 | 0.0001 | 1..... | 9999 |
| LXSGE-BMYC-40 | 40 | 80 | 12.5 | 10 | 200 | 125 | 0.0001 | 1..... | 9999 |
| 1.Measurement level: Level 2 | |||||||||
| 2.Temperature level：T30 | |||||||||
| 3.Temperature class: T30 (cold water meter) | |||||||||
| 4.Protection grade: IP65, IP68 (customized) | |||||||||
| 5.Electromechanical conversion error: ± 1m3 | |||||||||
| 6.communication mode：M-BUS,RS485，LoRa,LoRaWAN,NB-IoT | |||||||||
| 7.Communication baud rate: 2400 (customizable) | |||||||||
| 8.Working pressure: ≤ 1.0MPa | |||||||||
| 9.Installation mode: horizontal installation and vertical installation | |||||||||
| Installation dimension | |||||
| Installation method | caliber（DN) mm | long（L） mm | high（H) mm | wide（B) mm | Connecting thread（D) |
| Horizontal installation | 15 | 165 | 118 | 93 | G3/4B |
| 20 | 195 | 118 | 93 | G1B | |
| 25 | 225 | 125 | 99 | G11/4B | |
| 40 | 245 | 225 | 254 | G2B | |
| Vertical installation | 15 | 105 | 144 | 95 | G3/4B |
| 20 | 105 | 148 | 95 | G1B | |
| 25 | 110 | 165 | 99 |
G11/4B | |
Concentrator
Equipment application
Lorawan Internet of things networking, GPRS wireless remote transmission networking, wired networking.
Equipment features
·With more than 300 meters, it is suitable for most occasions and has low installation cost.
·It has the function of supplementary reading, which can automatically supplement reading or manually read through the platform without missing data.
·Automatic storage of no less than 1 month's meter reading data records for easy access.
·Automatic detection of line fault and timely alarm notification.
·It can be used for on-site meter reading and push protection, or for remote control of concentrator meter reading, so as to find faults in time.
·Automatically copy data and report to the server every day,
technical parameter
·Static power: 2W
·Dynamic power: 15W
·Static rated current: 10mA
·Dynamic rated current: 70ma
·Rated voltage: 220VAC
Maximum number of meters: 300

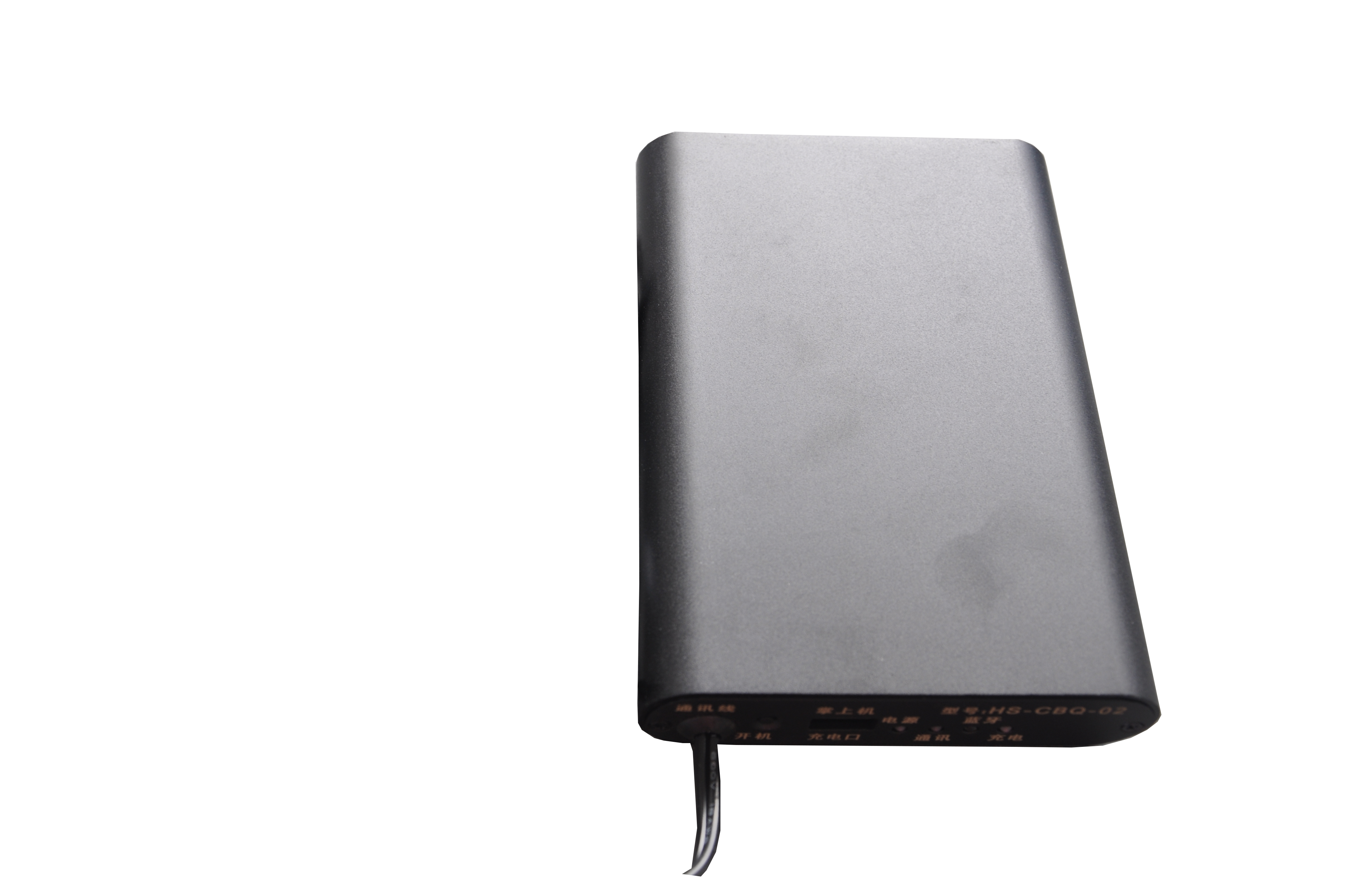

Portable meter reader
Equipment features
·Bluetooth interface, compatible with palmtop and smartphone.
·The battery is full and can read 6000 water meters, and the battery can be replaced. The number of meter reading is amazing.
·The interface is clear, the operation is convenient and the status indicator lights are abundant.
·Small size, light weight, easy to carry.
Technical parameter
Working temperature - 20 ℃ - 50 ℃
Battery capacity 2000mA * 3
6000 meters reading
Supporting components: rechargeable battery, charger, Bluetooth module, micro printer.
Other supporting equipment
| Product name | Product appearance | Product model | application | Power supply | Installation form | Maximum number of band meters |
| Junction box |
 | JXH | Bus plug connection | nothing | Wall hanging | With 16 |
| Simple copy box |
 | JCH | Simple form | nothing | Wall hanging / embedding |
With 100 |
