Wireless Internet of things water meter
Photoelectric direct reading Internet of things remote water meter
The remote transmission adopts photoelectric direct reading, which makes the data more accurate and reliable. The battery does not need real-time power supply, and only supplies power at the moment of meter reading, so the battery life is longer.
Detailed Introduction
Product principle

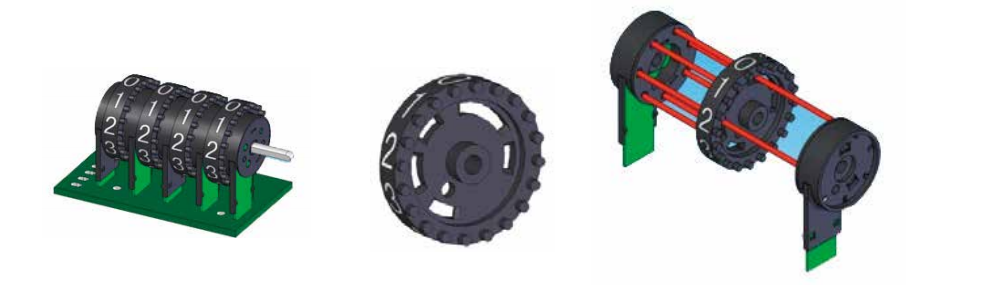

The photoelectric direct reading remote water meter is a kind of electronic remote water meter, which takes the mechanical water meter as the measurement base meter and uses the photoelectric signal to identify, convert and output the electronic reading.
Product Features
·Only working at the moment of meter reading, there will be no measurement disputes caused by asynchronous primary and secondary instruments due to pulse accumulation errors.
·Electromechanical conversion does not require real-time power supply, avoiding management risks caused by battery factors.
| Product parameters | |||||||
| Model | Range ratio |
Overload flow Q4m3/h |
Common flow Q3m3/h |
Boundary flow Q2L/h |
Minimum flow Q1L/h | Minimum reading m3 | Maximum reading m3 NB-IoT |
| Q3/Q1 | |||||||
| LXSGY-15N/W | R80 | 3.15 | 2.5 | 50 | 31.5 | 0.0001 | 99999.9999 |
| R100 | 40 | 25 | |||||
| R125 | 32 | 20 | |||||
| LXSGY-20N/W | R80 | 5 | 4 | 80 | 50 | 0.0001 | 99999.9999 |
| R100 | 64 | 40 | |||||
| R125 | 51 | 32 | |||||
| LXSGY-25N/W | R80 | 8 | 6.3 | 128 | 80 | 0.0001 | 99999.9999 |
| R100 | 100 | 63 | |||||
| Accuraacy | level 2 | Environmental rating | O/B | ||||
| Temperature class | T30 | EME | E1/E2 | ||||
| Pressure rating | 1.0MPa | ||||||
| Sensitivity level | U10D5 | ||||||
| Degree of protection | IP68 | ||||||
| Installation method | horizontal/vertical | ||||||
| Power supply mode | 3.6V ithium battery | ||||||
| Nozzle type | thread | ||||||
| Environmental class | Class B E1 | ||||||

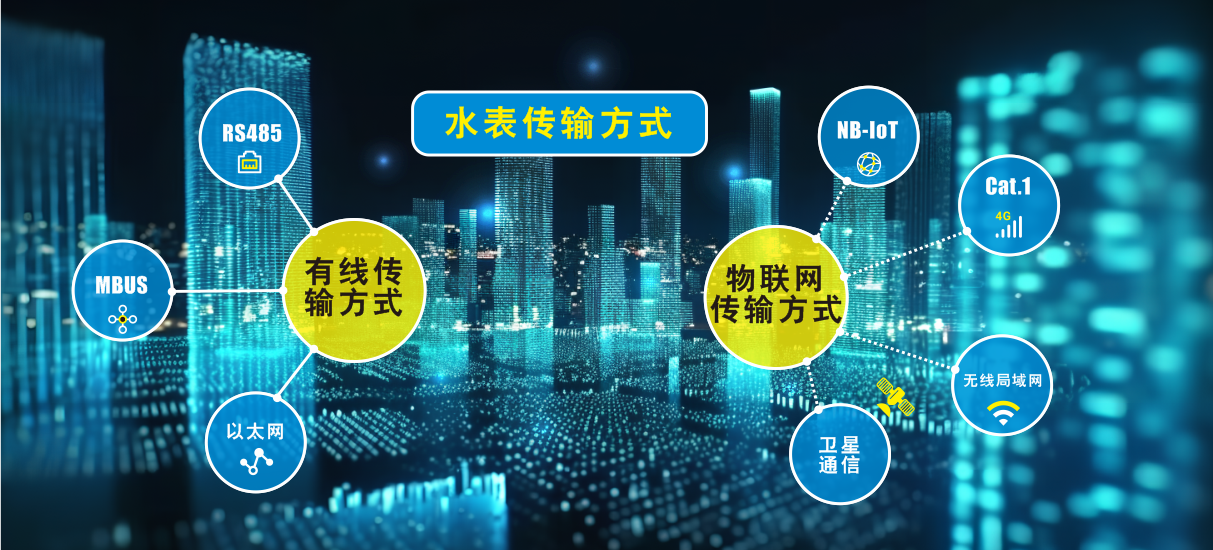

| Communication interface | NB-IoT\Cat.1\WLAN\Satellite communication | ||||||
| Operator frequency | Telecom\China Unicom\China Mobile | ||||||
| Surface material | stainless steel\copper\ductile iron\plastic | ||||||
Shape and structure

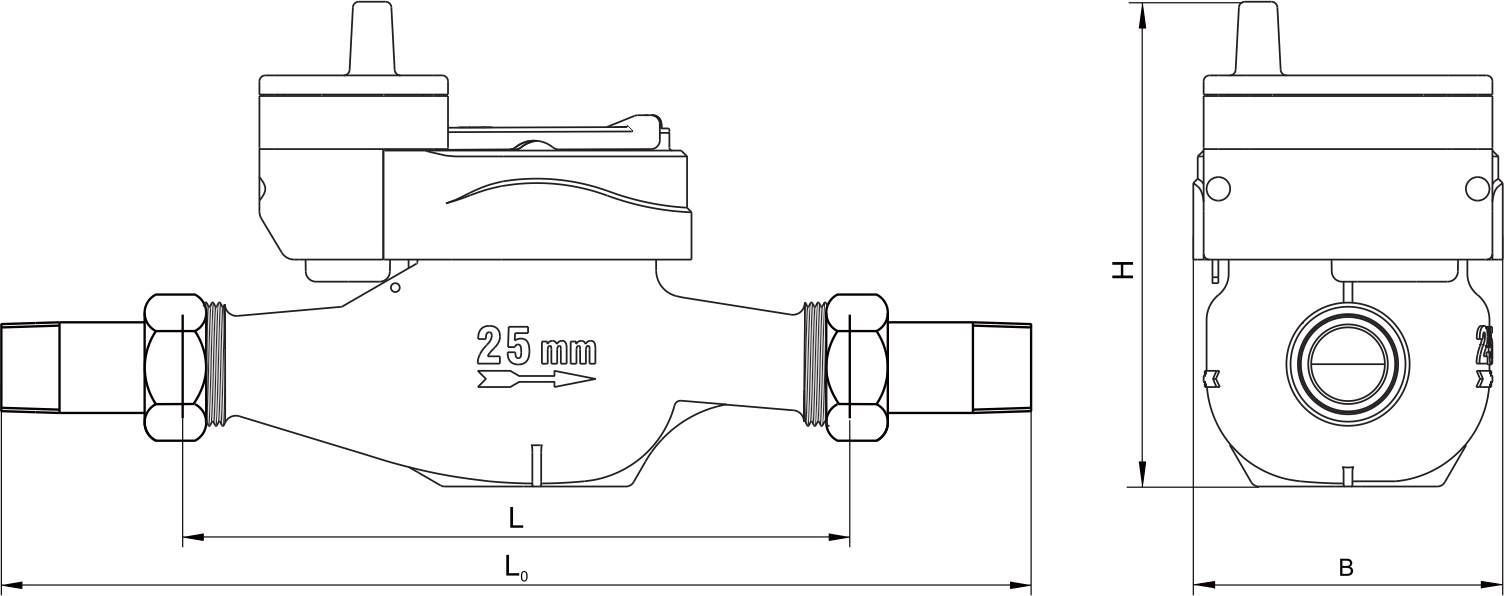

Installation Dimension
| Installation Position | DN | L(mm) | W(mm) | H(mm) | Link thread |
| horizontal | 15 | 165 | 96 | 145 | G3/4B |
| 20 | 195 | 96 | 145 | G1B | |
| 25 | 225 | 102 | 152 | G11/4B | |
| vertical | 15 | 105 | 115 | 144 | G3/4B |
| 20 | 105 | 115 | 148 | G1B | |
| 25 | 110 | 115 | 165 | G11/4B |
